ZimaBoard 832 Development Kit
INTRODUCTION
Everything you need to explore ZimaBoard possibilities!
As a product tailored for home services and smart home scenarios, openness and scalability have always been our focus when designing ZimaBoard. We have carefully analyzed market choices, and found three categories in total:
| SPEC/PRODUCT | ZimaBoard | Synology DS218+ | Raspberry Pi and Alternatives |
|
HARDWARE INTERFACE |
PCIe x4 Dual SATA 3.0 |
SO-DIMM RAM Slot | GPIO CSI Camera DSI Display Port |
In contrast, the ZimaBoard team is stoic at this point. ZimaBoard advocates a scene-centric design concept, combined with user-friendly, easy-to-use expandability. After repeated discussions and modifications, we chose the PCIe x4 interface to satisfy all expansion requirements, combined with dual SATA 3.0, which makes an ideal light personal server.
ZimaBoard 832 Development Kit allows you to explore a complete range of entry-level home server functions fully. Two ZimaBoard 832s can separately serve as an OpenWRT/pfSense software router and a LAN microserver running Linux Server at the same time.
The kit integrates mainstream PCIe expansion peripherals, covering user scenarios like multiple SATA, Ethernet, 4-channel USB 3.0, or open DIY WIFI gateway via WIFI 6. The Y-type HDD expansion cable comes in this kit supports two 2.5" HDD/SSD directly mounted on ZimaBoard.

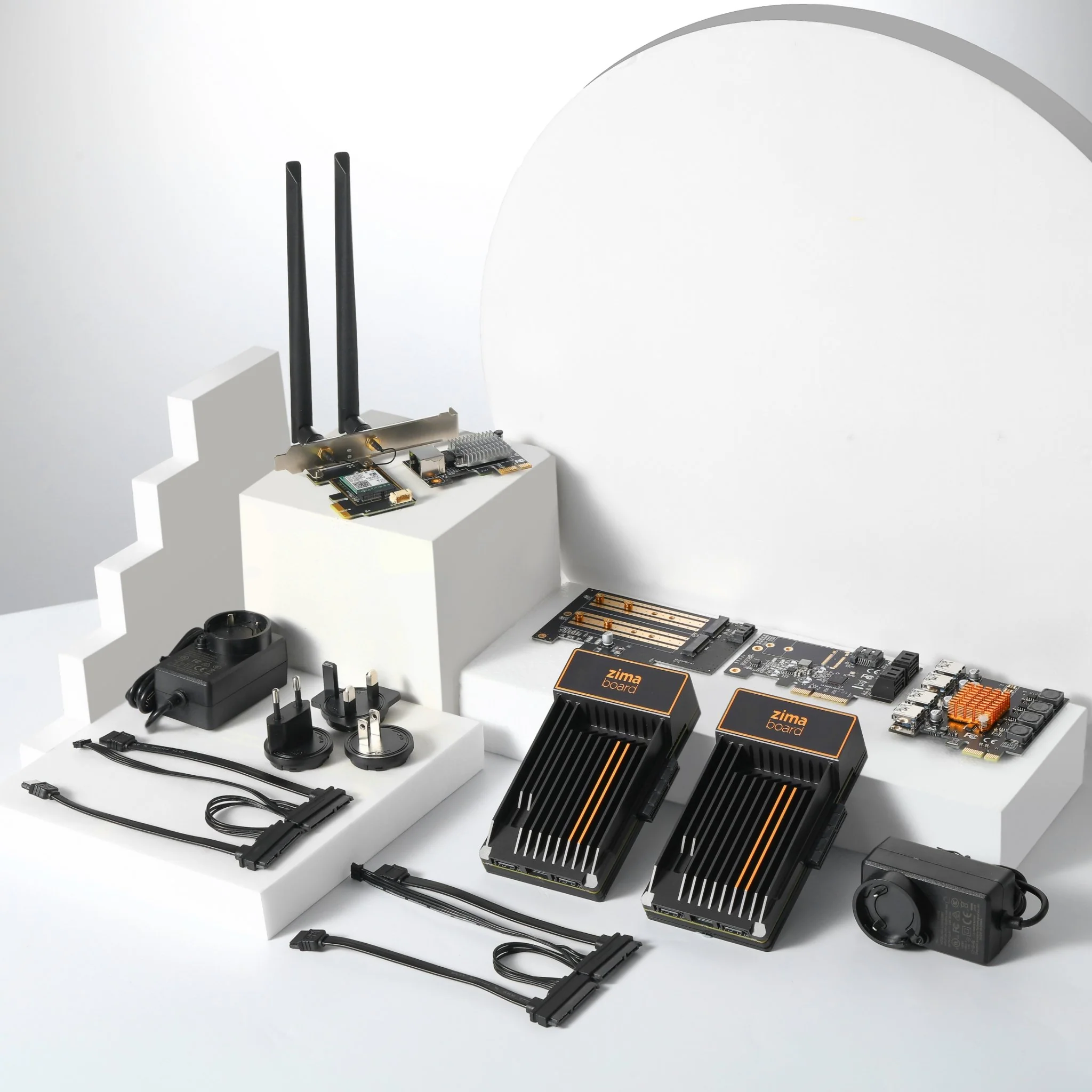

SHIPPING LIST
- 2x ZimaBoard 832
- 2x 12V/3A Power Adapter
- 1x PCIe to 2.5G Ethernet Adapter Realtek RTL8125 Chipset
- 1x PCIe to 4 Channel USB Adapter
- 1x PCIe to 5 Port SATA III Adapter JMB585 Chipset
- 1x PCIe to NVMe SSD Adapter
- 1x Intel AX210 WiFi 6E PCIe Card with 8Dbi Antennas Set
- 2x SATA Y-Cable for ZimaBoard
More Images
